id-switch-boat-large
idswitch-laptop-slider-02
idSWITCH-slider-02

idSWITCH

BE FREE

Make the most of your travels with a system that provides all the features of advanced home automation in your vehicles.

Monitoring | Diagnostic | Display

This system provides all the features of advanced home automation in your vehicle. It allows you to control the electrical and electronic systems on board such as lighting, air conditioning, entertainment systems from the tablet connected to the network.

monitoring-icon3-idm-technologie

Monitoring

– Battery capacity, autonomy, charge and discharge
– Heating management
– Information about water levels, temperature, vehicle levels, gas
– Creation of Modes: Day, Night, Travel, …

affichage-icon3-idm-technologie

Display

– Integrated tablet of different sizes
– Customizable HMI according to your needs

diagnostic-icon3-idm-technologie

Diagnostic

– Real-time display of defects
– Validation of the global installation at the end of the production line by simple visualization (productivity gain)

We offer several software and hardware solutions
to meet the different needs

idSWITCH SLIM

A system introducing automation that integrates a number of new technologies

idSWITCH Full

A new generation electrical system integrating a control panel and a mobile app for optimal use

idSWITCH SLIM

idSWITCH SLIM systeme is designed for motorhome, introduce many new technologies including digital switching, wireless switching, system monitor and many others. With master power integrated more functions, it could reduce precious space, time and cost for motor-home builders.

schema-global-idswitch-slim-en

System highlights

• A highly integrated master power module with built in battery charger, solar charge controller,
battery management, digital switching and water tank measurement

• An elegant design 4.3″ LCD system monitor with Bluetooth connectivity to support mobile App

• Wireless switch panel design to simplify cable harness.

• Dual outputs booster charger for Euro 6 engine

• High performance lithium battery

Modules in the Slim system

Master power module – LMP31

Technical features

Integrated with below functions into a single box:
• “AC charger 18A
• Solar charge controller 15A
• Water tanks measurement
• Built-in BLVP to cut off load from battery

• 16 outputs for DC loads smart management
> 3 relay controlled outputs
> 2 relay controlled and with by-pass outputs
> 1 motor-driven output for footstep
> 6 fuse protected outputs
> 3 D+ simulated outputs
> 1 relay controlled output powered by auxiliary battery and motor
battery both

• TBB premium Il charging algorithm to charge lead acid battery properly
• Lithium battery compatible
• RF compatible
• Vehicle standard connector for plug and play

ecran-tactil-C4-BT en option pour remplacer CCP3

System monitor C4-BT
optional to replace CCP3

Technical features

A stylish monitor, offers the approach for user to access critical information at a glance and to control the load at the touch of a finger

4.3″ LCD with resolution 480x270px

* Puit in Bluetooth to support mobile apP

interupteur-sans-fil-pico-2

Wireless Switch PICO II

Technical features

• RF wireless technology, great saving on cable harness
• The button name is printed
• Black and White color is available
• Built in cell battery
• Surface mounting
• Dimension 72x72x11.5mm/p>

sonde-eau-rsa-rsf

Water tank sensor RSA/RSF

Technical features

• Mesurent level 0%, 25%, 50%, 75% and 100%
• Top installation
• Probe length of RSA can be tailor-made to fir tank depth

booster-charger-nemo-DMT1250-pour-moteur-euro-6

Booster charger NEMO DMT1250
for Euro 6 engine

Technical features

• With dual outputs and total output current 50A

> 30A to charge auxiliary battery (charge power programable)
> 20A to power AES fridge

• Non-isolation design with max efficiency 96%
• Euro-6 engine (Smart alternator) compatible
• TBB premium Il multistage charging algorithm for various chemicals
• Lithium battery compatible
• Built in automatic temperature and voltage compensation
• With Phoenix type connecotr for Plug and Play
• Built-in fuse protection
• Natual cooling without fan
Control panel CCP3
• LED display for voltage information of auxiliary and motor battery
• LED display for level information of two water tanks
• Three buttons for key function: 12V master switch, water pump and Night mode
• Optional to replace C4

panneau-de-commande-CCP3

Panneau de commande CCP3

Technical features

• Affichage LED pour les informations de tension batteries auxiliaire et moteur
• Affichage LED pour les informations de niveau des réservoirs d’eau
• Trois boutons pour fonction de : interrupteur principal 12V, pompe à eau et mode nuit
• Option pour remplacer Ecran C4

batterie-lithium-haute-performance-M12-100

High performance lithium
battery M12-100

Technical features

• Rated capacity 12.8V 100AH
• Long cycle life, over 3000 cycles a 80% DoD @25°C
• Maintenance free with low self-discharge rate
• Supports high continuous discharge current up to 150A, which perfect works with
an inverter 1500W or 2000W
• Supports parallel connection up to 4pcs
• Built-in BMS with automatic balancing and protection against to over-charging,
over-discharging, over-temperature etc.
• Pre-defined BMS software compatible with TBB master power & charger to assure
designed lifespan of lithium battery
• Built in heater element to support battery to be charged at temperature – 20°C
• Super light weight and extremely compact size

Weight:11.5kgs
Size:310*165*187mm

coupe-batterie-deporte

Remote battery switch

Technical features

• A rocker switch to turn M12-100 ON/OFF remotely

> Connected with battery by communication cable
> Could be installed at any location with easy access

idSWITCH FULL

idSWITCH FULL systeme is the next generation electrical system for motorhome. Compatible with multiple communications including Cl-bus, Bluetooth and CAN, motorhome owner can approach equipments through system monitor and mobile app for maximum convenience and ease of use.

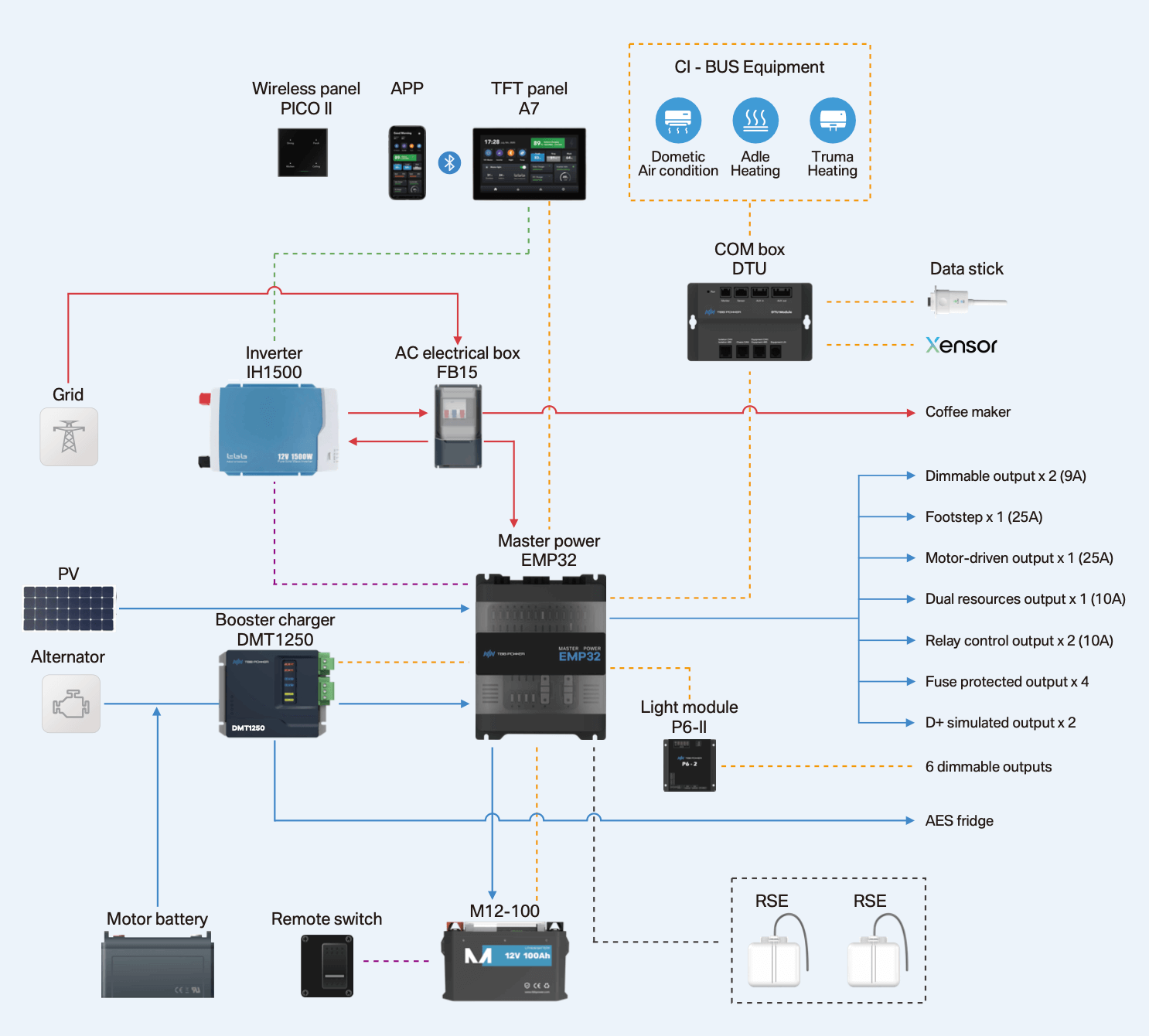

schema-full-en

System highlights

• A highly integrated master power module with built in battery charger, solar charge controller,battery management, digital switching and water tank measurement

• • A7, a system monitor, offers the approach for user to access critical information at a glance and to control the load at the touch of a finger

• Wireless switch panel design to simplify cable harness

• Dual outputs booster charger for Euro 6 engine

• CI BUS equipment compatible

• External lighting control module if more dimmable lighting control is required, include RGB lighting

• Super compact 12V 100AH lithium battery with BMS pre-defined LFP charging

• High frequency inverter with built in bypass and ground relay, to power coffee maker or hair dryer

• With Bluetooth connectivity to support mobile APP

Modules in the Full system

module-EMP32

Master power module – EMP32

Technical features

• Integrated with below functions into a single box: AC charger 18A
• Solar charge controller 15A
• Water tanks measurement
• Built-in BLVP to cut off power from battery
• 13 outputs for DC loads smart management

> 2 dimmable outputs
> 1 relay controlled and with by-pass output
> 1 motor-driven output for footstep
> 2 relay controlled outputs
> 4 fuse protected outputs
> D+ simulated outputs
> 1 relay controlled output powered by auxiliary battery and motor battery both

• TBB premium II charging algorithm to charge lead acid battery properly
• Lithium battery compatible
• CAN, LIN, RF compatible
• Vehicle standard connector for plug and play

interupteur-sans fil PICO II

Wireless switch panel PICO II

Technical features

• RF wireless technology, great saving on cable harness
• The button name is printed
• Built in cell battery
• Surface mounting, 72x72x11.5mm

booster-chargeur NEMO DMT1250 pour moteur Euro 6

Booster charger NEMO DMT1250
for Euro 6 engine

Technical features

• With dual outputs and total output current 50A
• 30A to charge auxiliary battery
• 20A to power AES fridge
• Non-isolation design with max efficiency 96%
• Euro 6 engine (Smart alternator) compatible
• TBB premium Il multistage charging algorithm
• Lithium battery compatible
• Built-in fuse protection
• Natual cooling without fan

Ecran tactile TFT 7'' A7

7” TFT system monitor A7

A system monitor, offers the approach for user to access critical information at a glance and to control the load at the touch of a finger. In the meantime, communication bus compatible products such as heater, air conditioner, refrigerators, generator and a host of sensors can be added as well for maximum convenience and ease of use.

Technical features

• 7’’ TFT with resolution 1024 x 600px
• Android based
• System monitor with active data and history record
• 1GB DDR3 and 8GB EMMC
• Built in Bluetooth to support mobile app
• Spring fixture for easy installation
• Multiple communication port: USB, RS485, CAN, TF card

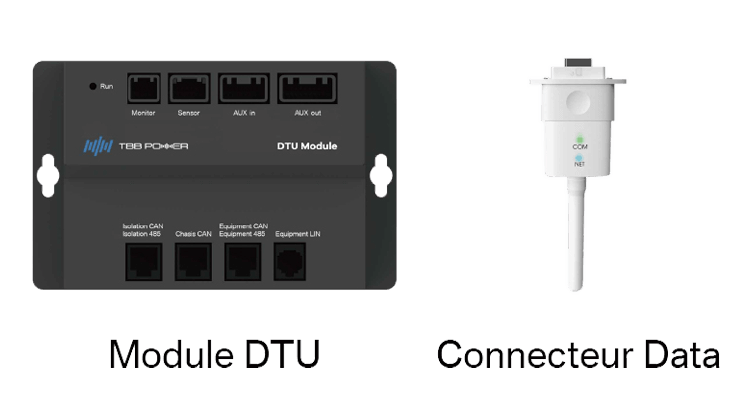

Unité de contrôle du système DTU

System control unit DTU

Technical features

• System control unit to coordinate all devices in system
• To assign priority be powered ON or OFF to different devices within system
• To manage the charging if there are more than one active chargers in system
• To collect data of all devices in system
• To conduct battery protection strategy to system
• Data logging stick can be connected
• 4 sets of dry contact outputs

Sensors

Through DTU, system supports multiple sensors and is able to monitor via A7 and APP.

convertisseur-haute fréquence de série e-RAY IH1500L-BYP

High frequency inverter
e-Ray series IH1500L-BYP

Technical features

• Pure sine wave output
• With by-pass output and built-in ground relay
• Rated power 1500W and full power output even at 35°C AC in and one of AC out are WAGO terminal
• High efficiency up to 90%
• With USB charger, 5V2A
• With dry contact input and output
• Power saving mode is available and the threshold value to enter into power saving mode is settable

Boitier électrique AC FB15

AC Electrical box FB15

Technical features

• With 2pcs RCCB 30mA, 16A. One for shore power input, one for inverter ouput
• With 1pc CB 16A for AC equipment not powered by inverter
• Input/output designed as WAGO terminal for quick installation

batterie-Lithium à haute performance M12-100

High performance lithium battery M12-100

Technical features

• Rated capacity 12.8V 100AH
• Long cycle life, over 3000 cycles a 80% DoD @25°C
• Maintenance free with low self-discharge rate
• Supports high continuous discharge current up to 150A, which perfect works with
an inverter 1500W or 2000W
• Supports parallel connection up to 4pcs
• Built-in BMS with automatic balancing and protection against to over-charging,
over-discharging, over-temperature etc.
• Pre-defined BMS software compatible with TBB master power & charger to assure
designed lifespan of lithium battery
• Built in heater element to support battery to be charged at temperature – 20°C
• Super light weight and extremely compact size

Weight:11.5kgs
Size:310*165*187mm

Capacitive type water tank sensor RSE-A

Technical features

• Precise measurement with 1% as one step
• Non-contact design, insensitive to dirt and solids in the water
• Digital sensor with communication can be used to interlock with pump

Coupe batterie déporté

Remote battery switch

Technical features

• A rocker switch to turn M12-100 ON/OFF remotely
• Connected with battery by communication cable
• Could be installed at any location with easy access

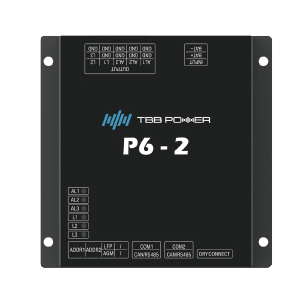

module-P6

Load module P6
(When more dimmable lighting control is required)

Technical features

• With 6 chip set controlled outputs for smart lighting management
• Dimmable lighting whit minimum 1% step brightness adjustment
• Color temperature is tunabl
• Protected by software and no fuse is needed
• Rated current 42A
>9A x 3
>5A x 3

Built-in RF compatible for wireless switch panel Quick connector for plug and play
